Brand: maxmostcom

Features:

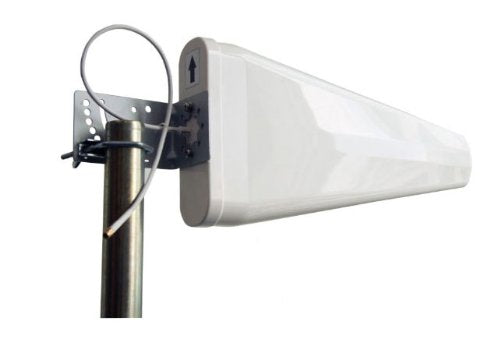

• Wide Band Log Periodic Yagi Antenna with 30ft cable and mounting bracke (Pole is not included)
• SMA Male connector on 30ft cable for MOFI MOFI4500 Cellular 4G LTE Router mofi 4500
• Frequency: 698-960/1710-2700 MHz
• Gain: 11dBi Cable 30ft LMR200 Low-Loss Cable
• Antenna Dimension (mm): 445x210x70

Publisher: maxmostcom

Details: Yagi antenna is ideally suited for providing and/or improving reception in residential homes, work shops, small-sized parking garages, basements , small office areas, rural areas and places where the reception is weak. It will help to boost signal and increase data transfer speed.

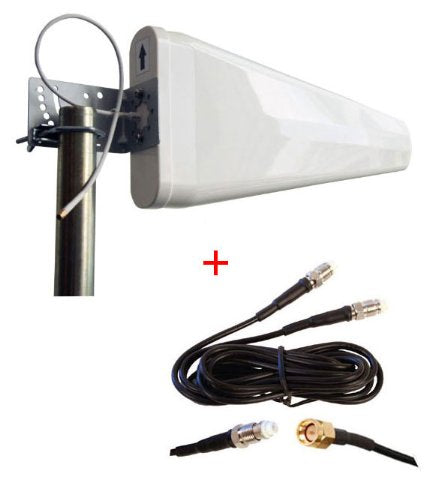

Antenna Kit: Includes a 11db Log Periodic Yagi Antenna, 30ft LMR200 Low-Loss cable with sma male connector for MOFI MOFI4500 Cellular 4G LTE Router mofi 4500 and mounting bracket.

700MHz-2700MHz Wide-Band Log Periodic Yagi Antenna Highest Gain

* Frequency Range (MHz): 698-960/1710-2700 mHz
* Gain: 11 dBi
* VSWR: <=1.7
* Input Impedance: 50 ohms
* Polarization: Vertical or Horizontal
* Horizontal Beamwidth (o) (half-power): 60±8/55±8
* Vertical Beamwidth (o)(half-power): 50±5/45±5
* Front to Back Ratio(dB): >=21
* Max, power(W): 50
* Connector Type on Antenna: FME male
* Lightning Protection: DC ground
* Antenna Dimension (mm): 445x210x70
* Rated Wind Velocity(km/h): 100
* Radome material: protected ABS
* Cable on Antenna (mm): 400
* Diameter of installation pole(mm): 30~53
* Working Temperature(C): -40~+60

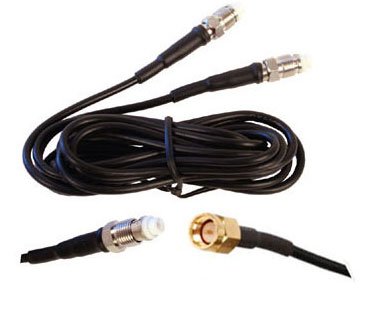

* Extension Cable with LMR200
* Extension Cable length: 30 feet
* Extension Cable connector: FME Female to SMA Male

The wide Band Log Periodic Directional Antenna will collect the cell tower signal and send it through the cable to an amplifier, cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to an amplifier or directly to the antenna and broadcast back to the cell tower.

EAN: 1233322342551
